RF POSITION LEVEL DETECTION

Download Literature

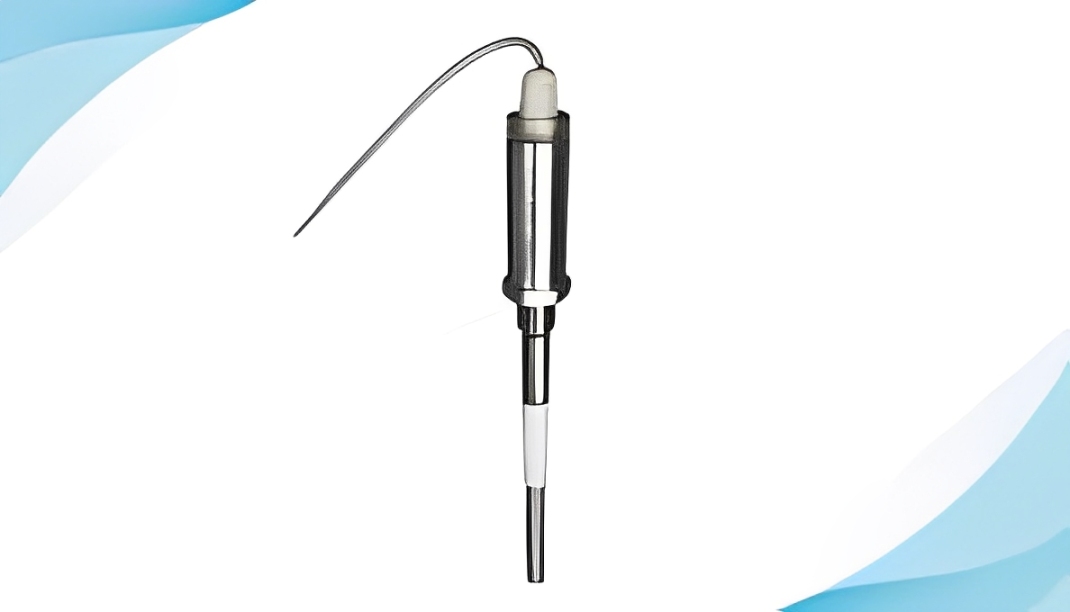

Product Image

PiCap/Vector / Tester is capable of detecting metallic and non-metallic objects at long distances, reliably and efficiently. PiCap sensitivity is factory set to detect most of the available substances in common Industrial applications.

Industries

  • Plastics, Dryers, Vacuum systems, Hopper level control, conveyor systems.
  • Agriculture: Grain silos, automatic feeding systems, Irrigation systems Wood.
  • Industry: Window and door framing, saw dust/wood chip level control, wood pallet production.
  • Material handling: Wooden pallet detection on conveyors, Package inspection, level control of filling lines.
  • Food and Beverages: Level detection in Bottles and packages, position control of packaging, Pallet detection.

Application

  • Level detection in Non Conductive sticky media and Liquids
  • Level detection for storage tanks, and pipeline
  • Level detection in solid media
  • Protection pumps from running dry.

Features

  • Available in Stainless steel housing
  • Flush or non-flush types
  • Long sensing range.
  • No manual calibration required for most of the Industrial applications.
  • Magnetic key provided for sensitivity adjustment in typical applications.
  • Current limited open collector PNP transistor output as standard.
  • Reverse polarity and transient voltage protected.
  • Selectable Fall-safe High or Low mode.
  • Built-in LED indicators for Status, Alarm and Normal operation non-metallic tube.
  • Sensing range (Sd) 1.0 to 30 mm, factory set at 15 mm
  • Precise switch point even when coated
